Screw piles have a very wide range of applications. They can be used in all types of soils - sandy, peaty, clayey soils and high water levels. Thanks to the high-quality hot-dip galvanized steel, the foundations of the Q235B screw pile are stable and secure. Hot-dip galvanizing process ensures ground screw long term service life. Screw piles can be installed anywhere without damaging tree roots, soil, or lawns or greenery that have already been harvested. Screw piles not only replace traditional concrete foundations but are also useful for large and long structures such as walkways and terraces. Each screw pile is pre-marketed for quality and safety.
Brand:
WanhosItem NO.:
WN76-1600-T3.0Order(MOQ):
10Payment:
EXW/FOB/CIF/DDU/DDPMarket Price:
$50Price:
$14/pcsPrice Range:
500 - 2000/$12.5Price Range:
100 - 500/$13Product Origin:
Xiamen,ChinaColor:
NaturalShipping Port:
Xiamen PortLead Time：
7 daysMaterial:
Q235Solar Mounting Foundation ; Q235B Ground Screw Piles

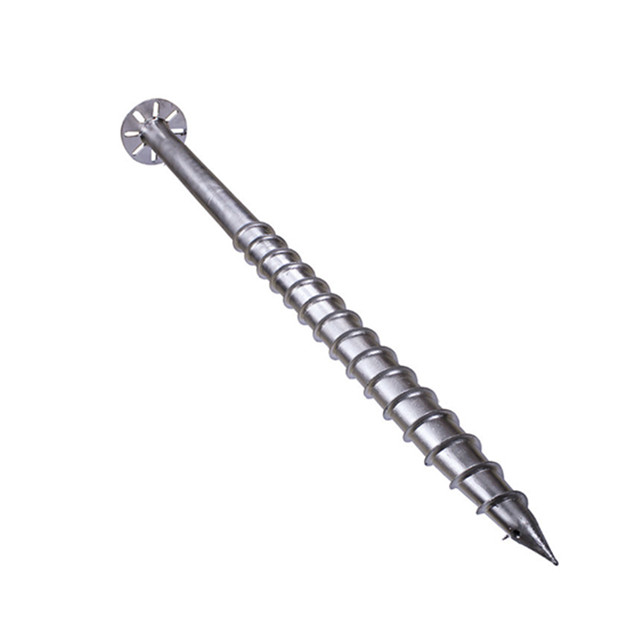

Q235B Ground Screw Pile is a modern foundation system.Using the drilling machine can easily put the screw into the earth in minutes, which makes it the most efficient and cost-saving footing solution.
Solargyroof Q235B Ground Screw Pile is designed according the strength test,can be widely applied to different soil conditions.
|
Product Name |
Galvanized Carbon Steel Q235B Spiral Ground Screws |
|
Land Type |
Ordinary Ground,Uneven Land,Mellow or Sandy Ground,Hard Soil |
|
Material |
Q235B |
|
Color |
Natural |
|
Certificate |
ISO9001:2008,DIN,SGS,TÜV |
|
Max Wind Speed |
60m/s |
|
Max Snow Load |
Up to 1.4KN/㎡ |
|
Module Angle |
0-30 Degree |
|
Panel Orientation |
Portrait/Landscape |
|
Warranty |
12 Years |
|
Duration |
More than 25 Years |

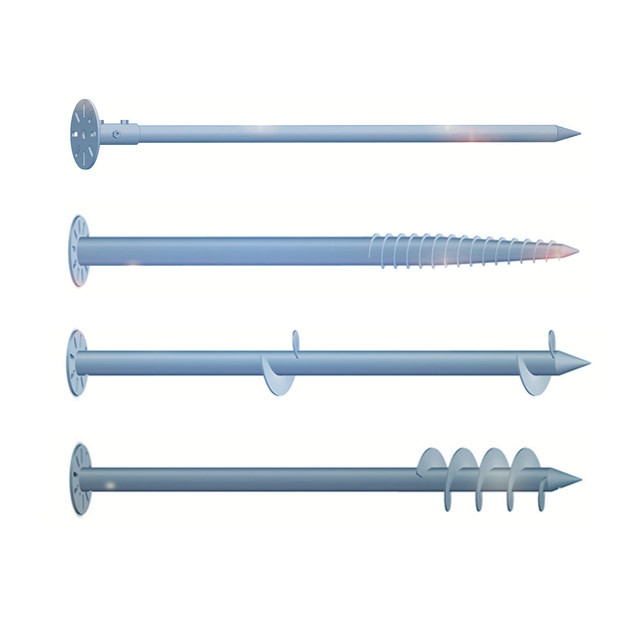

Specification:
Item No.
Length
Diameter
Flange
Material
WN-76-1200
1200mm
76mm
200mm
Q235B
WN-76-1400
1400mm
76mm
200mm
Q235B
WN-76-1600
1600mm
76mm
200mm
Q235B
WN-76-1800
1800mm
76mm
200mm
Q235B
WN-76-2000
2000mm
76mm
200mm
Q235B
WN-76-2500
2500mm
76mm
200mm
Q235B

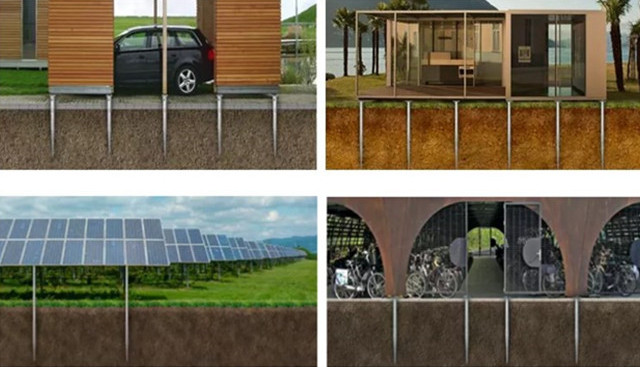

Application:
Company Informations:
Xiamen Solargyroof Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Solargyroof Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.
Management Concept:
Solargyroof Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.
