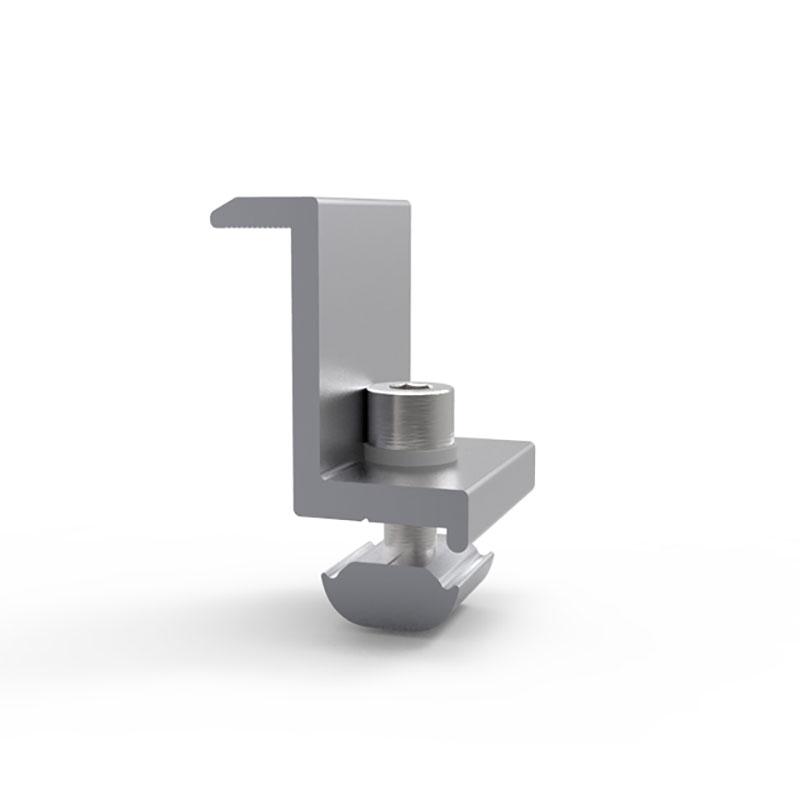

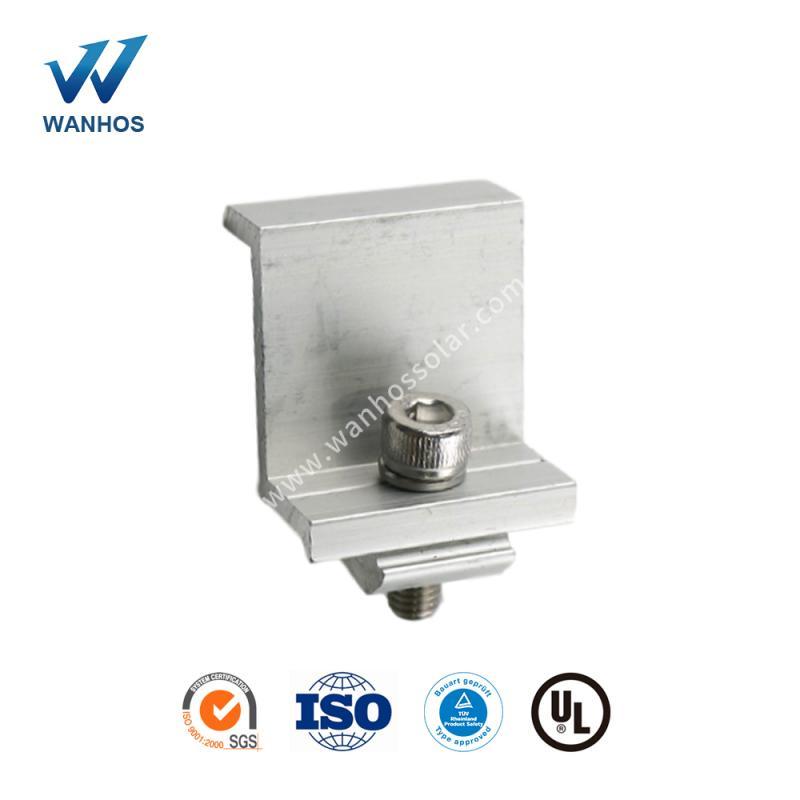

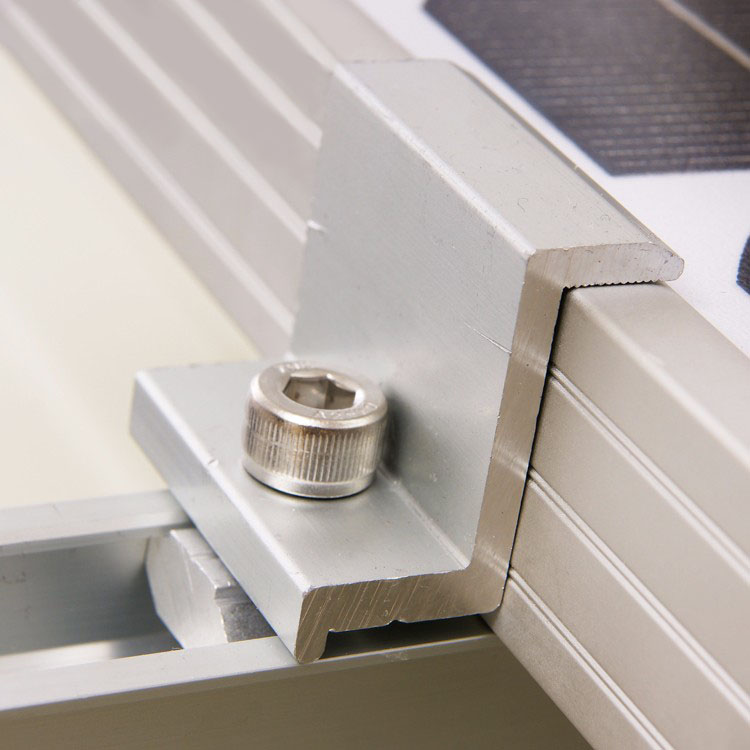

Aluminium leg mid-end clamp for solar panel roof rvs and ground installation

We provide low-cost Al 6005 T5 solar panel mounting fixture End Clamp solar panel clamp. Suitable for 35mm-50mm framed solar panels. Use natural silver or black anodized aluminum material.

Brand:
Wanhos
Product Origin:
Xiamen City, Fujian Province
Color:
silver
Lead Time：
15
Snow Load:
1.4 KN/M2
Wind Load:
60 m / s
Material:
AL 6005 – T5 ( Anodized )
Installation Site:
Ground / Roof / Carport solar panel mounts
Certificate:
ASNZS1170/ ISO9001/ SGS/TUV etc. certificates
Warranty:
10 years
Designed LifeSpan:
25 years
Packing Details:
Carton+ Wooden/Steel Pallet etc
Lead time:
3-21 Days(According to the quantity）
MOQ:
1 PCS
Sample:
Free samples
Production capacity:
10MW monthly delivery

Inquire now

Categories

New Products

Product Detail

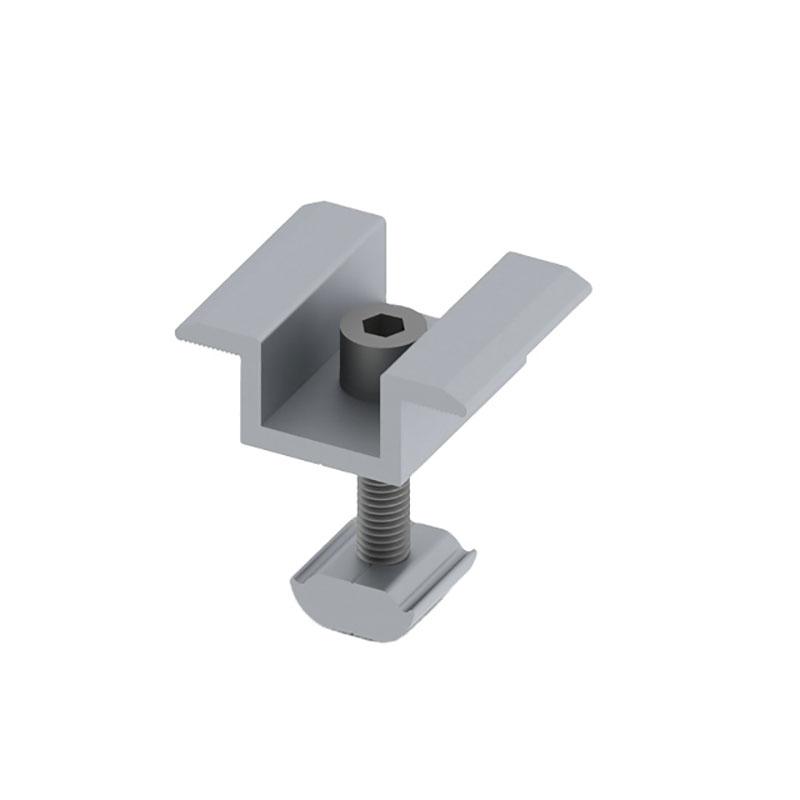

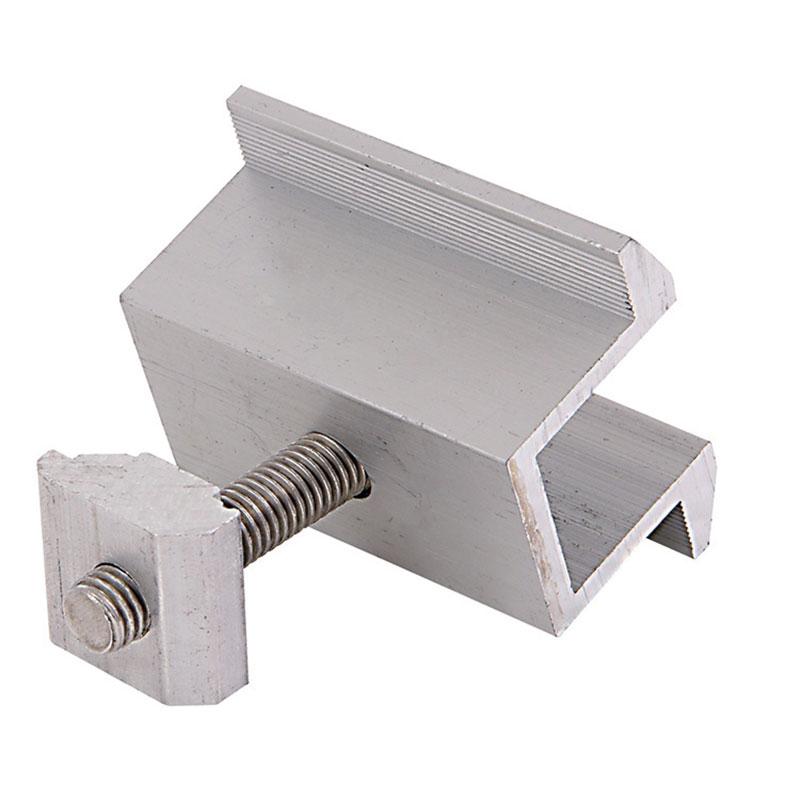

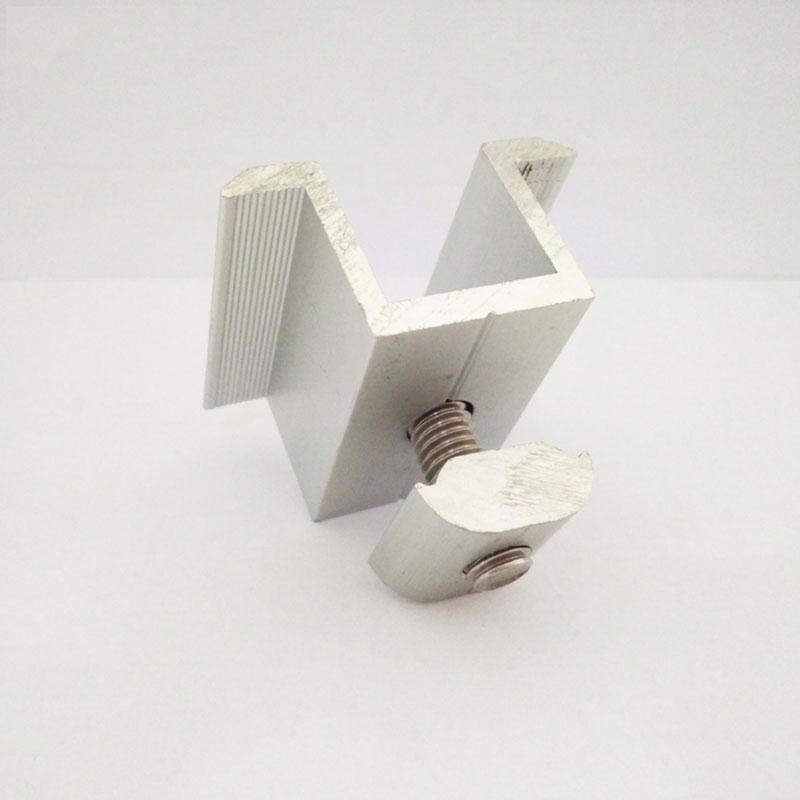

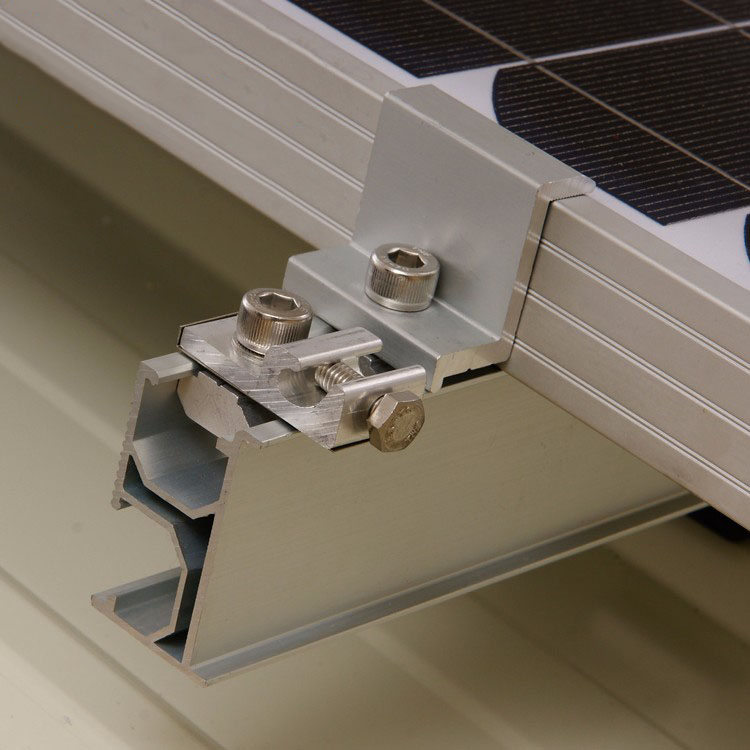

Aluminum Solar PV Panel Mounting Mid Clamps

The aluminum solar middle clamp is suitable for 35mm-50mm framed solar panels. Use natural silver or black anodized aluminum material 6005-T5. The design of the middle clamp is precise, so that the connection between the panels is firm.

Aluminium Solar Mid Clamps

Aluminium solar panel mount mid clamps

Photovoltaic Mounting Solar Module Clamps

Product Features:

– Suitable for on-grid/off-grid installation systems;

– Two choices of framed or frameless photovoltaic panels;

– Simple operation: slide in, turn 90 D, lock;

– The inner clamp can cooperate well with the entire installation system;

– Material: aluminum alloy/hot-dip galvanized steel/SUS304;

– The high wind and snow load design of our solar fixtures;

– Can be pre-assembled to save labor costs;

What information should I provide to get a quote?

A sort of. Panel size (1640*992*40mm, 250w).

Number of panels (pieces or total power)

C. Installation angle (5°, 10°, 15°, etc.)

d. Planned solar panels (horizontal, 4x20pcs)

e. Wind speed (m/s) and snow load (KN/m2)
