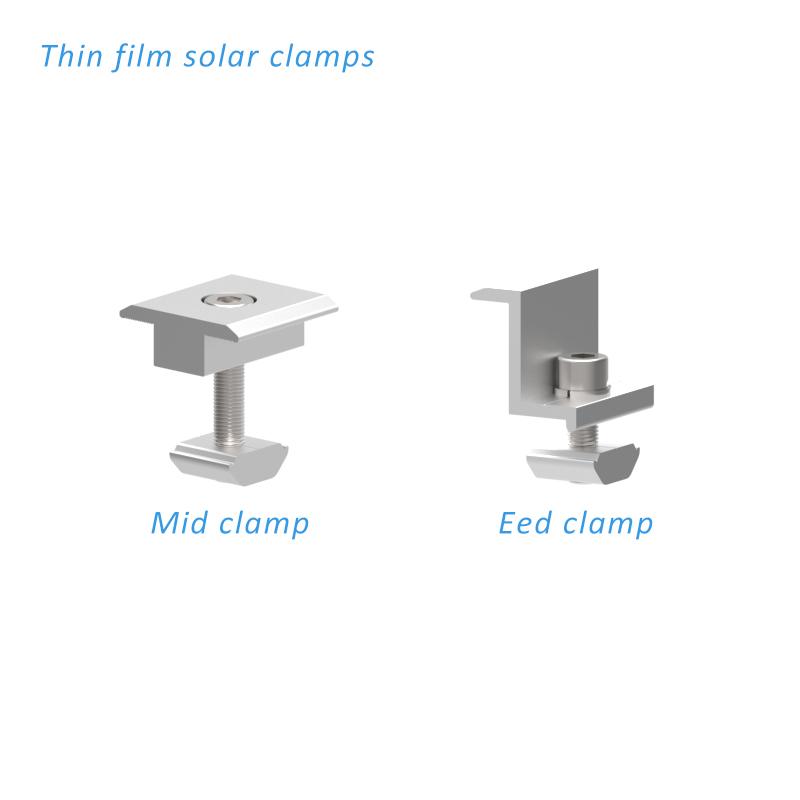

Mid Clamp and end clamp Aluminium solar panel mounting and Racking

Mid Clamp solar Module Components

Product Type: For solar module installation system.

Material: aluminum6005-T5

Maximum wind load: 60 m / s

Maximum snow load: 1.4 KN / M 2

Application: Frame solar panel installation

Snow Load:
1.4 KN/M2
Wind Load:
60 m / s
Material:
AL 6005 – T5 & SUS304
Installation Site:
Ground / Roof / Carport solar panel mounts
Certificate:
ASNZS1170/ ISO9001/ SGS/TUV etc. certificates
Warranty:
10 years
Designed LifeSpan:
25 years
Packing Details:
Carton+ Wooden/Steel Pallet etc

Inquire now

Categories

New Products

Product Detail

Mid Clamp and end clamp Aluminium solar panel mounting and Racking

The photovoltaic module clamp is suitable for carports, roofs, and ground installation structures.

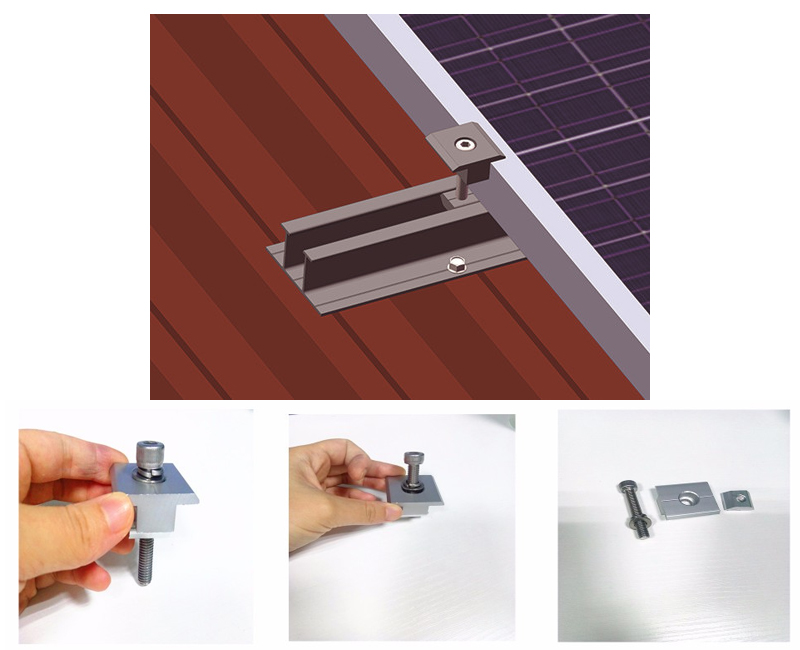

Our middle clamp fixing parts are made of high-quality SUS304 stainless steel hexagonal bolts and sliding nuts.

In addition to our standard nuts for guide rails, we can also customize nuts for any aluminum extrusion/carbon steel profiles.

By using our M8 hexagon bolts of different lengths, the PV module middle clamp can be well adapted to the depth of solar panels of different frames: 30mm, 35mm, 40mm,

45mm, 50mm...Please choose the correct size according to the thickness of the solar panel.

This intermediate clamp for photovoltaic module installation can be pre-assembled with our hexagonal screws and other kits.

Brief Descriptions :

PV mounting inter clamps for framed solar panels installing

Item type:	Solar Installation Components
Installation Site	Ground / Roof / Carport solar panel mounts
Profile Material	AL 6005 – T5 ( Anodized )
Fasten Parts	SUS 304 Steel
Color	Silvery or Black
Wind Load	60 m / s
Snow Load	1.4 KN/M2
PV Modules	Framed
Module Orientation	Portait and Landscape
Standards	AS/NZS 1170,DIN 1055,GB50009-2012,TUV,JIS C 8955 : 2011
Warranty	10 years
Designed LifeSpan	25 years
Packing Details	Inner :Bubble bag+inner box+Carton
Packing Details	Outer : Wooden Box, Steel Pallet, MDF, etc
Tags:	Solar Roof Clamps
