The angle of photovoltaic modules installed below 15 degrees may have accumulated water and dust, which will seriously reduce the amount of power generation, and may also generate hot spots, which may affect the service life of the module. and the loss of annual power generation is more than 5%.
Solar Panel Cleaning Clip is a rectangular self-adhesive strip made of polymer, which contains water-inducing agent. Just stick it to the frame of the photovoltaic module， There is no need to make any adjustments to the components. When it rains, it will automatically guide the mud water accumulated at the lower edge of the frame over the frame and flow out, and it will be discharged at the stage of mud water formation! The problems of water accumulation and ash accumulation of photovoltaic panels are easily solved!Brand:
WanhosItem NO.:
WHS-WDAC-35Order(MOQ):
100Payment:
EXW/FOB/CIF/DDU/DDPMarket Price:
$1.99Price:
$0.3Price Range:
50001 - 100000/$0.2Price Range:
10001 - 50000/$0.23Price Range:
1001 - 10000/$0.26Price Range:
1 - 1000/$0.3Product Origin:
Xiamen,ChinaColor:
Black & WhiteShipping Port:
Xiamen PortLead Time：
7 daysPv Modules 35mm clip for water drain
1. The losses of PV panels edge soiling for Solar Photovoltaic Systems
When it rains, due to the slight projection of the edge of the panels, the stagnant water is not drained away in time, and the mud in the stagnant water precipitates to soiling the edges or the corners of the modules. The accumulation of dirt in the panels edge or in the corners, can have dramatic consequences on the proper functioning of the photovoltaic system, it reduces photovoltaic panel power generation, and will form hot spots effect, reducing the service life of panels.

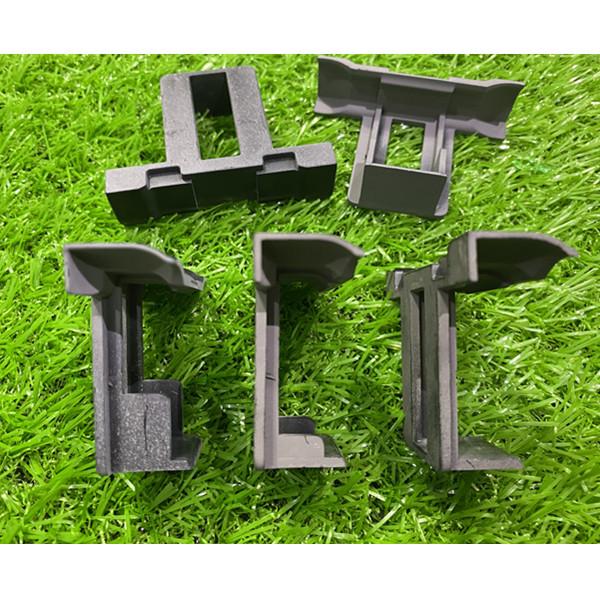

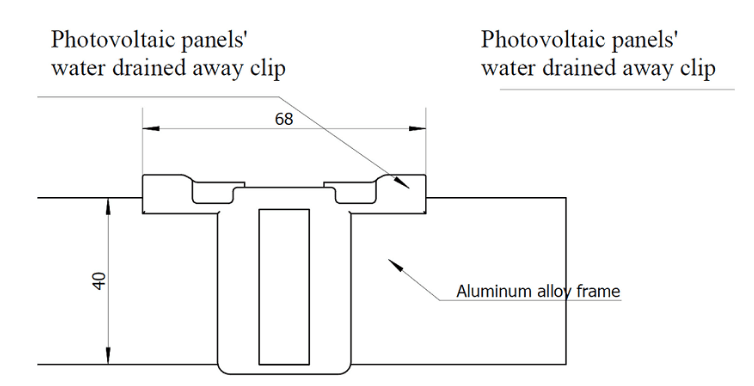

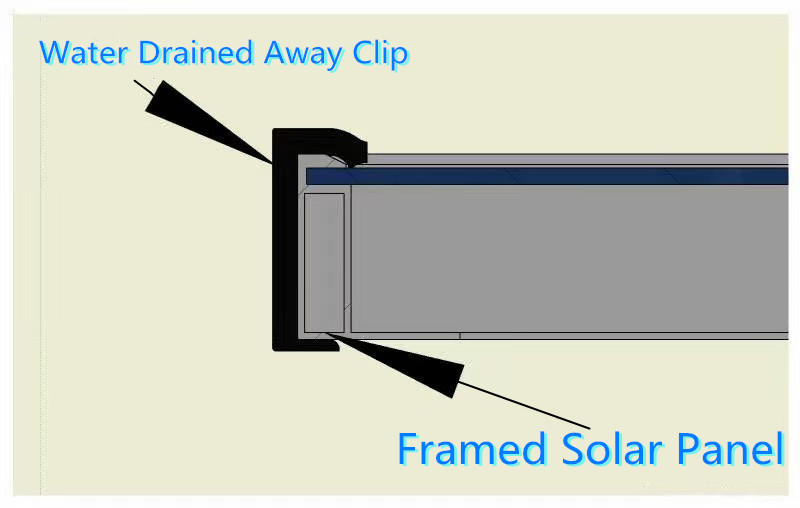

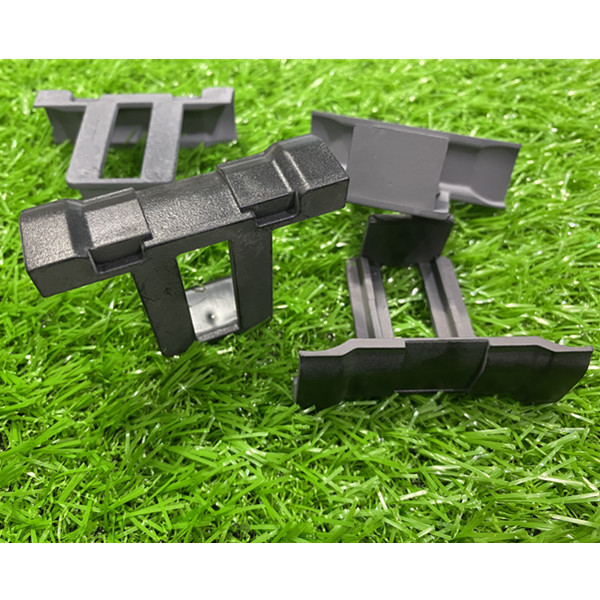

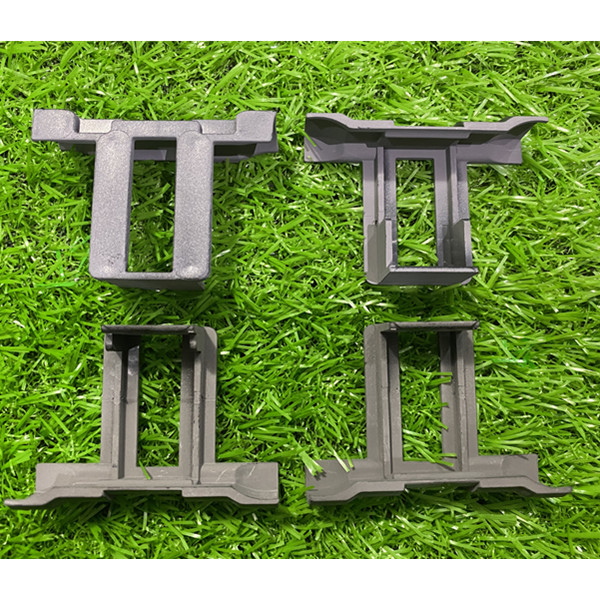

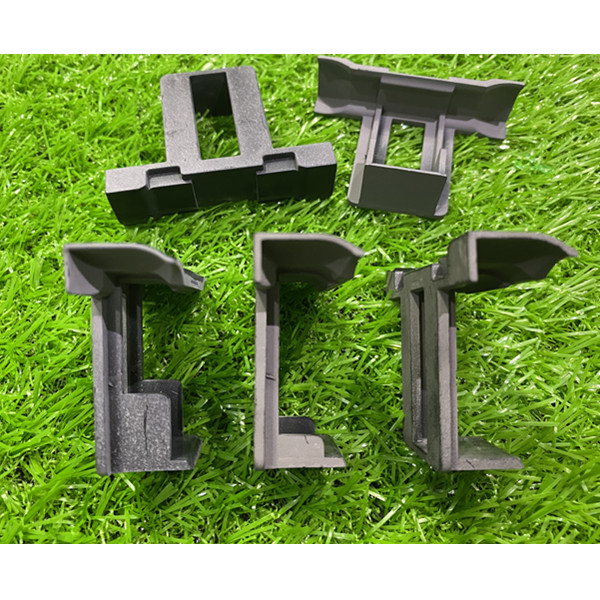

The PV panels water drained away clip is a self-fastening clip, made of plastic. The length is about 68 mm, weight 8 grams, and the width is based on the thickness of the panels aluminum alloy frame. Now there have five types: 45 mm, 40 mm, 35 mm, 30 mm, 25 mm; the size can be customized. Clasped the water clip to the bottom edge of the PV panel，the stagnant water will flows away, there is no fouling again.

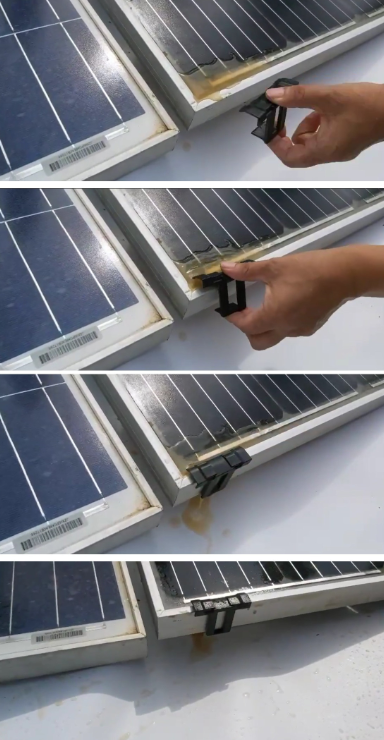

First, make the whole surfaces of the PV panels clean, and clasped the water clip to the bottom edge of the panels , and don't tilt it, so it is ok, if it rains again, there will be no mud zone.
Because the PV panel was made by different factories, so the sizes have a little different. Although, most panels can be installed normally, but however, there are some panels that cannot be used, so, before a large number of installations, you need to use a small number of samples to test install.
