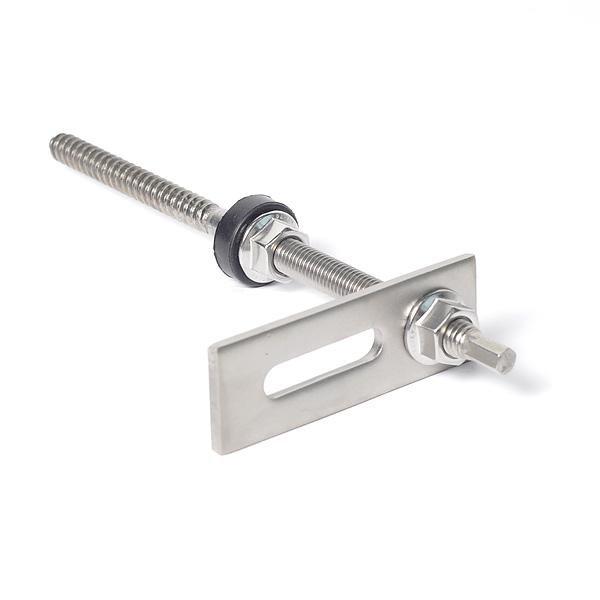

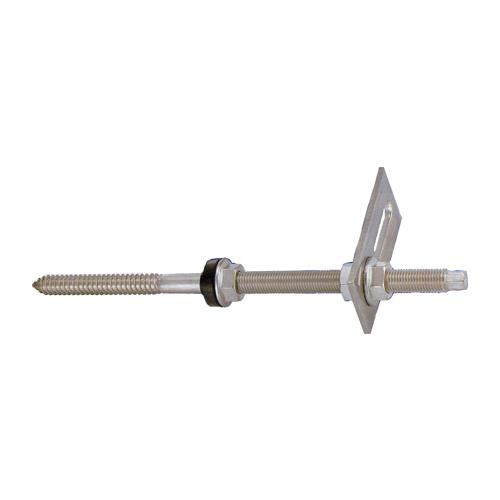

M12x200mm Solar Roof Mounting Hanger Bolt With L Foot

Solargyroof Solar Hanger Bolt is commonly used in metal or tin roof solar panel mounting system. Material stainless steel 304 to make sure its excellent antirust performance. Usually the hanger bolt will be install with L foot, easy installation and less cost.

Brand:
Wanhos
Item NO.:
WHS-HB
Order(MOQ):
10
Payment:
EXW/CIF/FOB/DUD/DAP
Product Origin:
Xiamen
Color:
Natural
Shipping Port:
Xiamen Port
Lead Time：
Within 7-15 working days

Inquire now

Categories

New Products

Product Detail

With L Foot High Quality M12x200mm Solar Roof Mounting Hanger Bolt

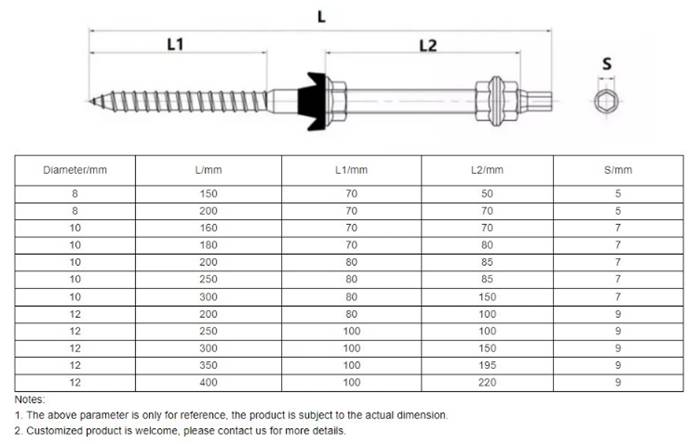

Product information1.jpg

;

Solargyroof Solar Double Thread Screws are made of high quality stainless steel SUS 304 with ISO9001/TUV/SGS certificates. ;The design of the screw is designed to facilitate customer understanding and installation. ;Double Thread Screws can be ;applied to install on both wooden rafter and steel purlin. Both types can be applied with L feet and plate.

;

Products name	Metal Roof Solar Mounting Hanger Bolts
Standard:	DIN,ASTM/ANSI JIS EN ISO,AS,GB
; Material	Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L ,SS31803
	Steel Grade: DIN: Gr.4.6,4.8,5.6,5.8,8.8,10.9,12.9; SAE: Gr.2,5,8; ASTM: 307A,307B,A325,A394,A490,A449,
Finishing	Zinc(Yellow,White,Blue,Black),Hot Dip Galvanized(HDG),Black, Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated

Production ; Process	M2-M24:Cold Froging,M24-M100 Hot Forging, Machining and CNC for Customized fastener
Customized Products Lead time	Busy season:15-30days,Slack seaon:10-20days
Stock Products	Stainless steel: All DIN Standard stainless steel fastener(BOLTS,NUTS.SCREWS.WASHERS)
Free Samples for standard fastener

;

M12x200mm Solar Roof Mounting Hanger Bolt With L Foot ;

; ; ;

;

; ;Advantages

;

1. Easy to install.

The design of the ;double thread screw ;is designed to facilitate customer understanding and installation.

2. Great flexibility

Double thread screw ; offer excellent compatibility.

3. Maximum life

Double thread screw ; are made of high quality extruded stainless steel and aluminum.

4. Excellent adaptability

No matter how rough the roof is, the double thread screw ;can be adjusted at any time according to customer requirements.

5. Guarantee durability

;

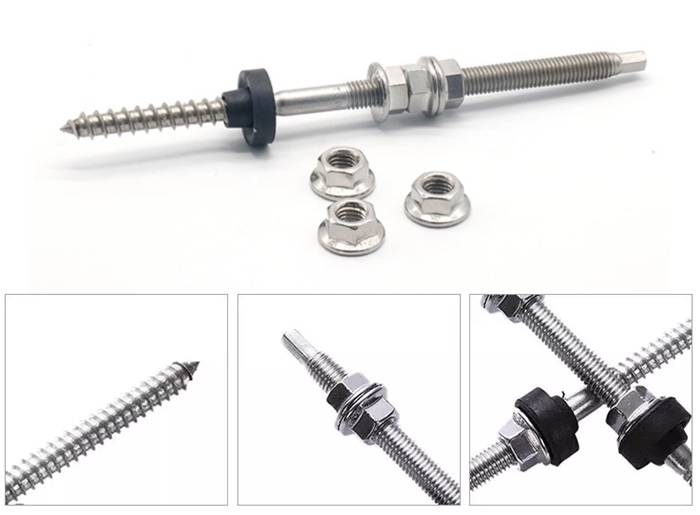

; ;Product Show

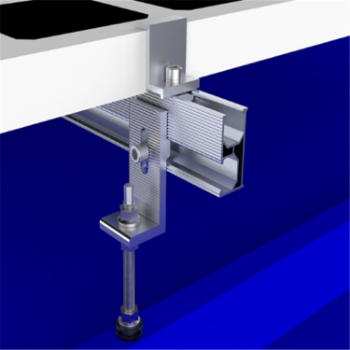

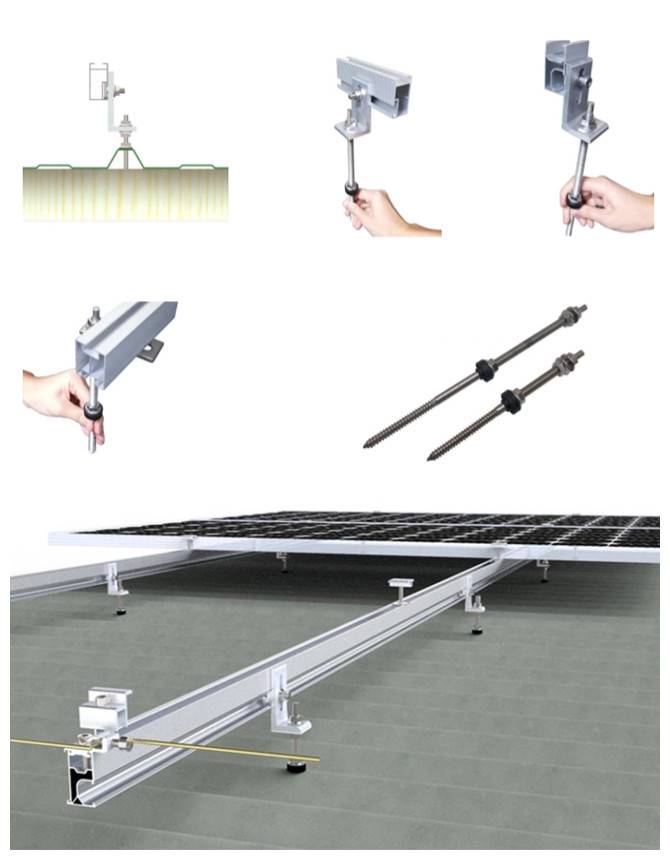

; ;Project Case of Double Thread Screw ;

;

Hanger bolt

;

Packing & Delivery.jpg

Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
