Solar H Rail For Roof Mounting System

Aluminum roof rail for solar panels , it is light weight and cheap, can be used on various hooks and fixtures.

Brand:
Wanhos
Item NO.:
WHS-017
Order(MOQ):
1
Payment:
T/T%
Product Origin:
Made in China
Color:
Natural
Shipping Port:
Xiamen port,China
Lead Time：
15days

Inquire now

Categories

New Products

Product Detail

Solar H Rail For Roof Mounting System

Solar Mounting Rail adopt aluminium oxide, Matched solar mounting rails can insert the proximate matter,Mounting rails with advanced technology which made the proximate matter and fastener easy to work come true. It can reduce the installation time and cost.

Advantages as follow:
1.Variety solar mounting rails for different wind speed and snow load.
2.The length of rail scan be customized according to different project.
3.Color can be anodized black or silver.
4.Easy to mount with unique nut and concise design.
5.Anti-corrosion and high strength.

Product Name	solar H rail for roof mounting system
Brand Name	Solargyroof
Model	R017
Material	Aluminum 6005-T5 Alloy
Certificate	ISO9001 , CE, etc
Standard	AS/NZS 1170
Service Life	Over 25 Years
Dimensions	Customized（According to the needs of customers）
Lengths	Customized（According to the needs of customers）
Weight	Depending on the Customized Rail.
Warranty	Over12 Years Warranty
Max Wind Speed	60m/s
Snow Load	1.4KN/M2
Supply Ability	More than 10000 Pieces per Week

Product details display：

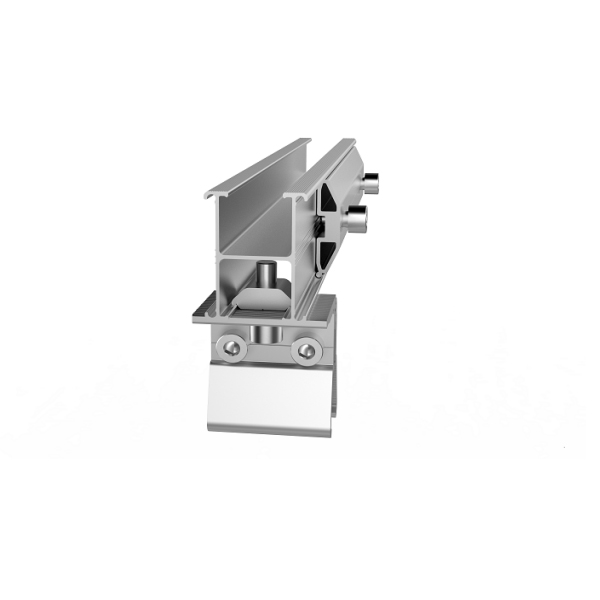

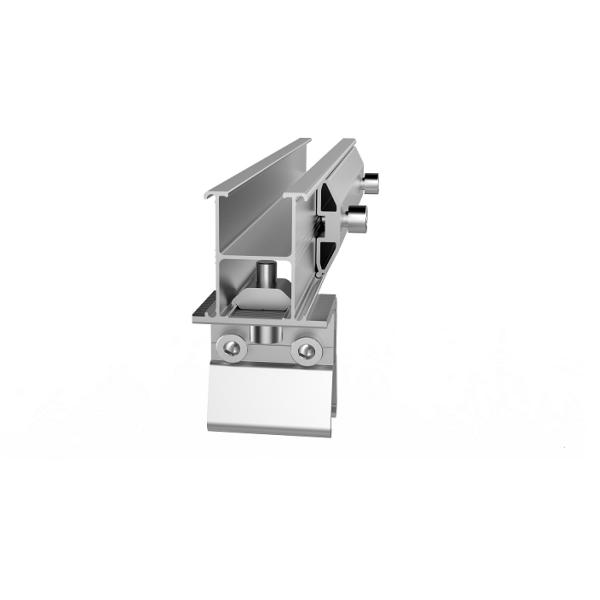

1. There is a gap at the bottom of the guide rail, which can be linked with the clamp hook to ensure that the hook is better fixed on the guide rail.

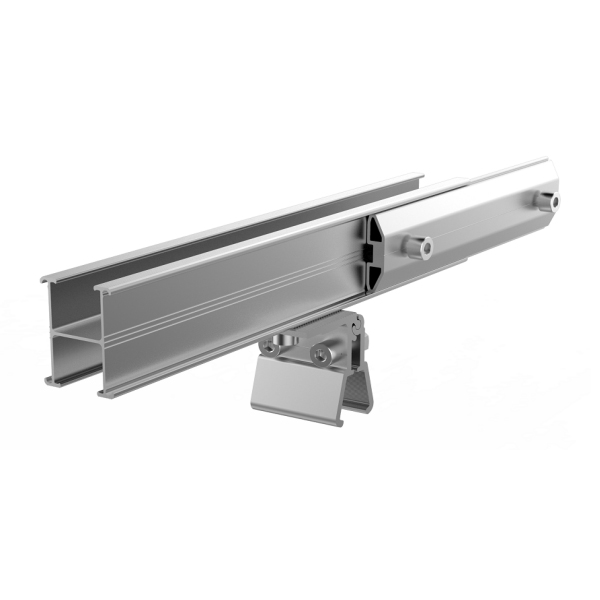

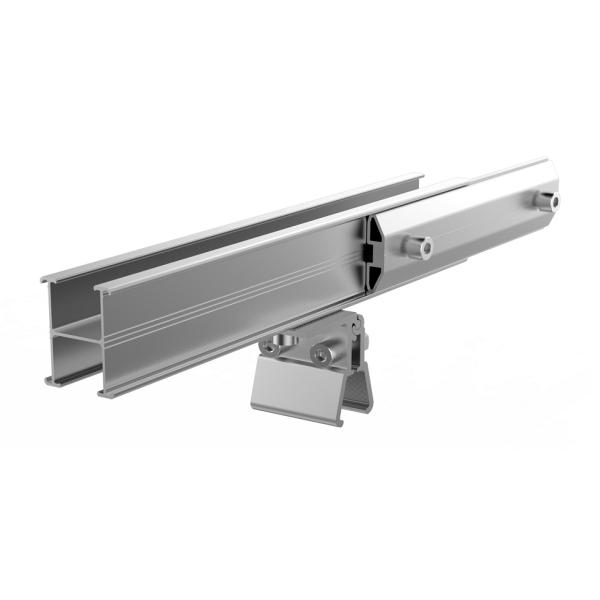

Aluminum Solar Mounting Rails

Other products:

Solar panel plastic abs mounts

Necessary info. for us to design and quote:
• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.

Solar panel H rail

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Tags :

Related Products

solar mounting kit on Tin roof solar roof L feet

; ; ; solar mounting kit on Tin roof solar roof L feet ; Solargyroof Solar L feet bracket is made of high quaity aluminum6005-T5 and Stainless Steel wood screw with the authorization of SGS, TUV, ISO. Anodized surface treatment to make sure ;high anti-corrosion and long life span. ; ; Solar roof mounting component L feet is design to mount solar panel kit on ;universal types of metal roofing such as ;asbestos tile roof, ;corrugated, trapezoidal profiles, tin roof, standing seam roof ;and so on. ; Specification ; lnstall Site Tin Roof Tilt Angle 10deg-60deg Building Height Up to 20m Max Wind Speed Up to 60m/s Snow Load Up to1.4KN/m2 standards AS/NZS 1170 & ISO9001 & SGS Material Stainless Steel Color Natural Anti-corrosive Galvanized Warranty Ten years warranty Duration More than 20 years ; ; ; Benefits ;L feet Widely install on Trapezoid, corrugated other tin roofs ; Pre-assemble kits makes quick installation ; &nb

solar mounting kit on Tin roof solar roof L feet

Products ;Details L Foot mount have been widely used on universal corrugated metal sheet roof. It also can fix to the roof rafter directly. Plus, it can be applied with all kinds of hanger bolt and roof clamps.

Tile roof Pv solar mounting bracket

Slotted connection, adjustable hook position, different width bases and multiple hole patterns provide flexibility and easy installation. The side-mounted design is directly connected to WANHOS Rail; no L-shaped feet are required.

Photovoltaic Panels Water Drainage Clips

Auto Remove Stagnant Water & Dust Increase power generation.Improve the life of solar panels. Easy installation. Automatically buckle the solar panel frame. Polymer material, anti-aging, high/low temperature resistance, long-term outdoor use

Solar Energy Roof Aluminum Mounting Rails

The 4.2 meter aluminum mounting rails are ideal for installing your solar panels easily and quickly. At the same time light and robust, they withstand high temperature variations and heavy loads. This mounting system attaches roof hooks using Solargyroof D-nuts. This rail can securely and safely hold the solar panels on the roof.

Metal Trapezoidal Roof Solar Panel Rails Brackets

Trapezoidal roof solar panel rails have wide application on trapezoid metal roof,you can install the trapezoidal roof solar panel rails easy, roof mounting system components only trapezoidal roof solar panel rails and solar clamp, you don't need others solar mounting components.

Solar Roofing Waterproof Aluminum Flashing Plant Mount With L Foot

The Solar Flashing Plant with ; from Solargyroof Solar can be installed in less than 60 seconds, and the key is its waterproof technology, which is installed on top of the shingles and eliminates the need to pry apart shingles and shove oversized aluminum flashing underneath.

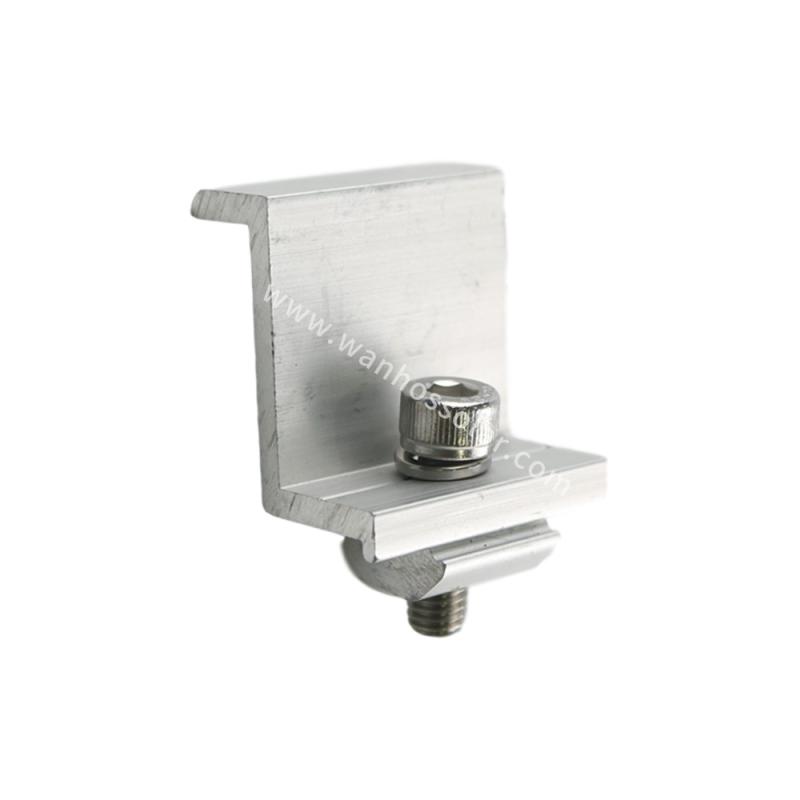

Anodized Aluminum Solar Panel End Clamp Kits
