Q235 Hot dip galvanized ground screw pile for solar mount racking systems

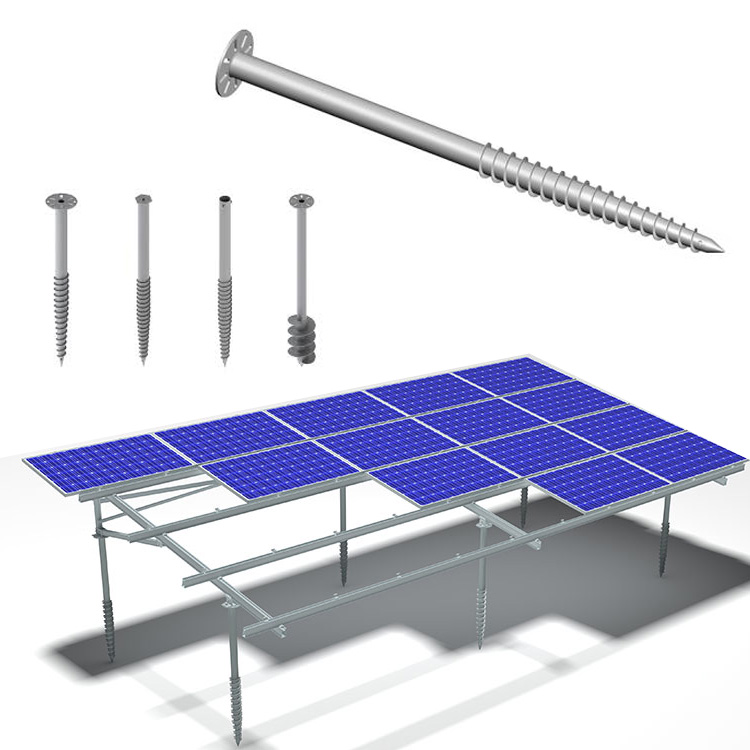

The solar ground spiral pile foundation is a strong and sustainable alternative to traditional concrete foundations, without the need for excavation and concrete pouring. Other applications for anchor screw foundations include signs, timber construction, and fences.

Brand:
Wanhos
Snow Load:
1.4 KN/M2
Wind Load:
60 m / s
Material:
Q235
Installation Site:
Ground solar panel mounts
Certificate:
ASNZS1170/ ISO9001/ SGS/TUV etc. certificates
Warranty:
10 years
Designed LifeSpan:
25 years

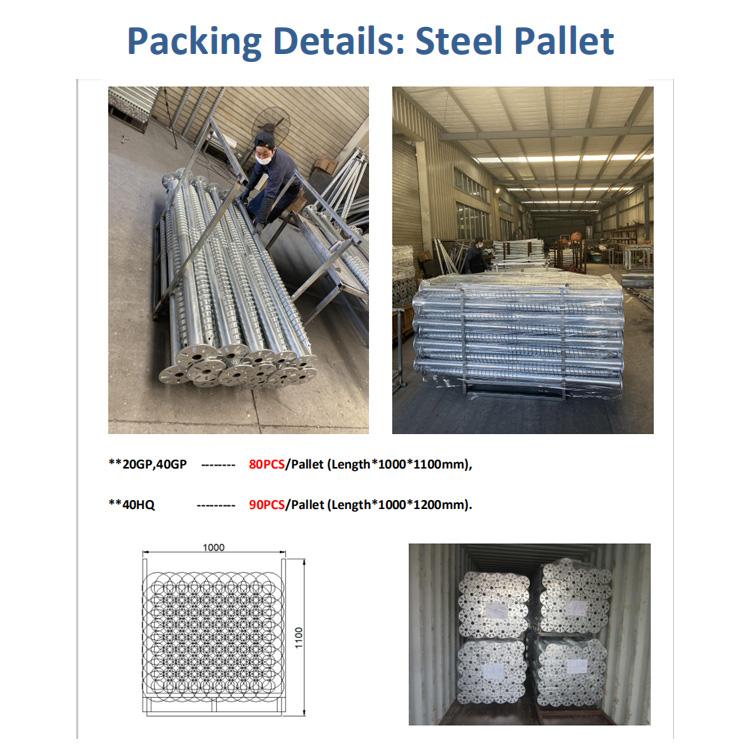

Packing Details:
Carton+ Wooden/Steel Pallet etc
Lead time:
3-21 Days(According to the quantity）
MOQ:
1 PCS
Sample:
Free samples
Production capacity:
More than 20000m² factory

Inquire now

Categories

New Products

Product Detail

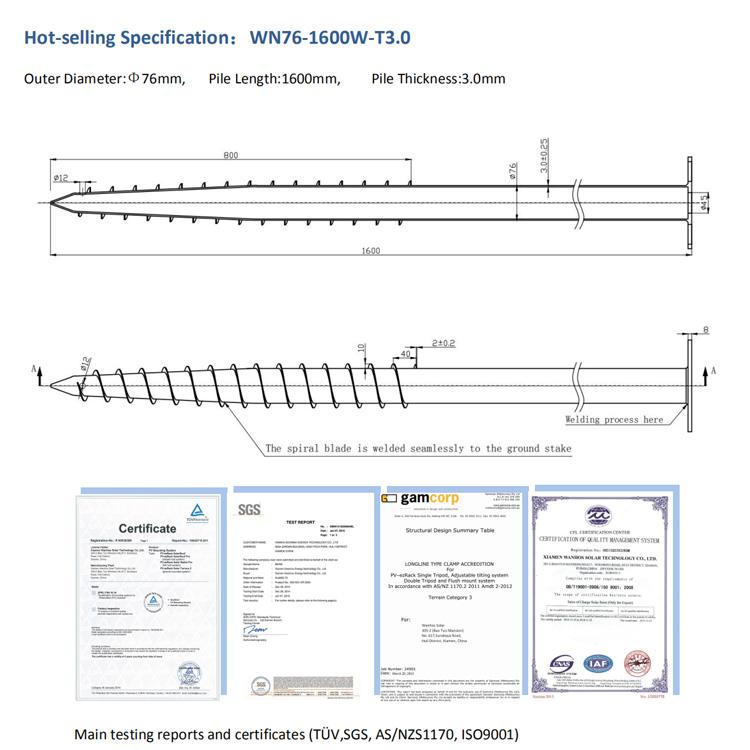

Technical Information

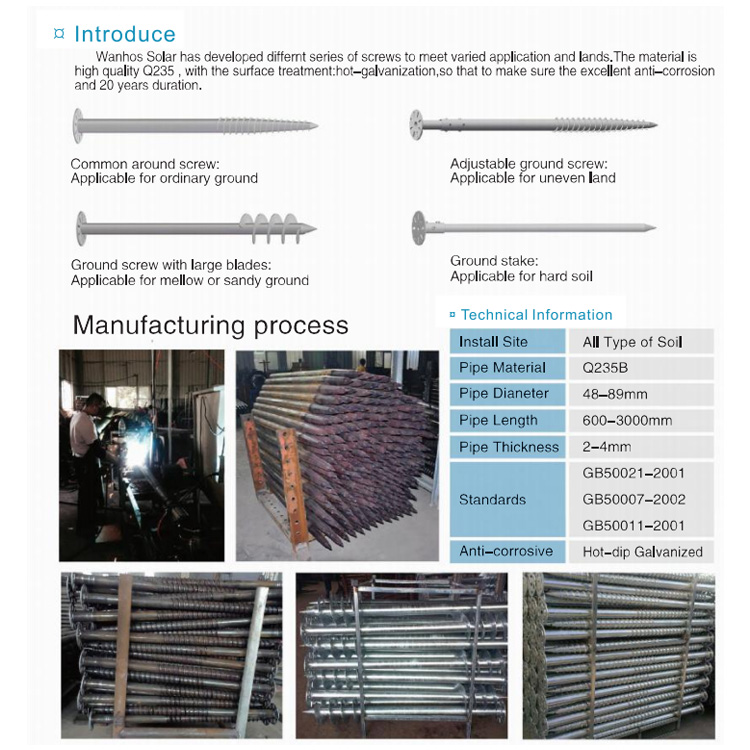

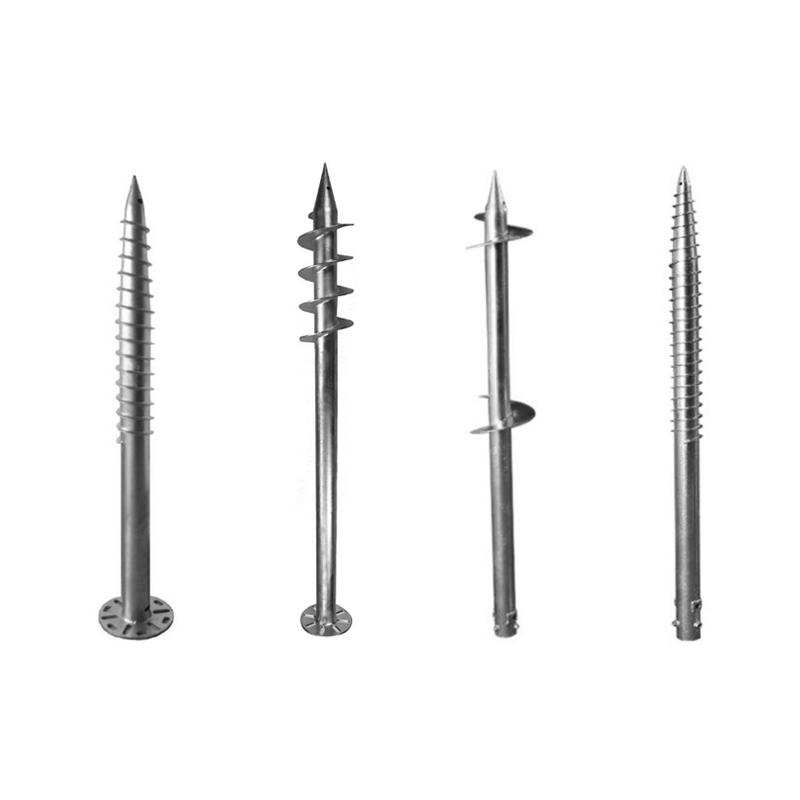

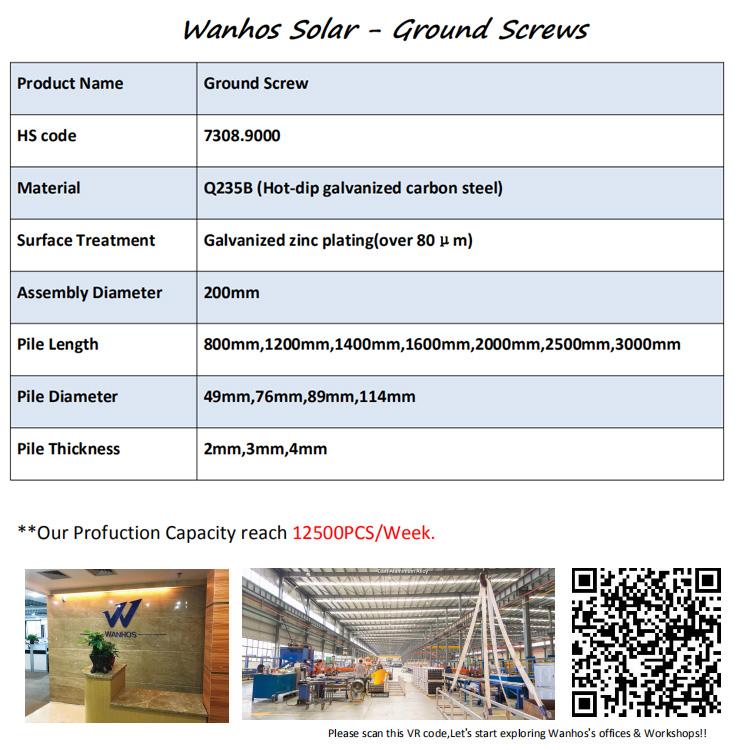

Ground Screw Type	Adjustable ground screw, flange ground screw, non-flange ground screw, etc.
Material	Hot dipped galvanized Q235, carbon steel
Ground Screw Length	600mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm, 2000mm, 2500mm, 3500mm, or as required
Wall Thickness	2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.5mm, 4.0mm, or as required
Ground Screw Diameter	48mm, 60mm, 76mm, 89mm, 114mm, or as required
Flange Type	D180x8mm, D200x8mm, D220x8mm, or as required
Service Life	More than 25 years life service
Foundation	sandy, loosening soil, tight soil, etc
Package	Steel Pallet, or as required
OEM SERVICE IS AVAILABLE

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
