Solar ABS caravan roof mounting structure

100% ABS solar panel caravan rooftop mounting structure

100% ABS caravan rooftop solar panel mounting bracket structure made of UV-resistant ABS plastic, the ABS solar mounting bracket can be used with any aluminium framed solar panel to provide a secure fixing for vehicles, caravans, boats, outbuildings etc.

Brand:
Wanhos
Item NO.:
WHS-RVM
Order(MOQ):
1
Payment:
EXW/CIF/FOB/DUD/DAP
Product Origin:
Xiamen
Color:
White/Black
Shipping Port:
Xiamen Port
Lead Time：
Within 7-15 working days

Inquire now

Categories

New Products

Product Detail

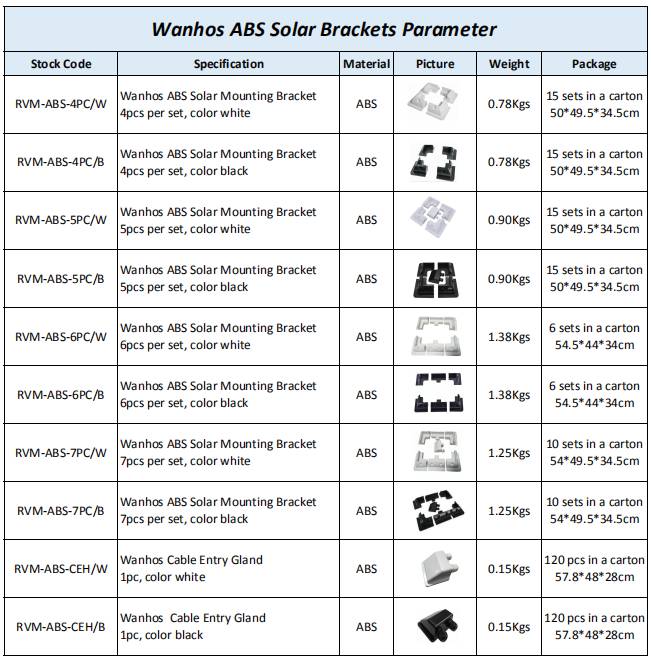

Product information1.jpg

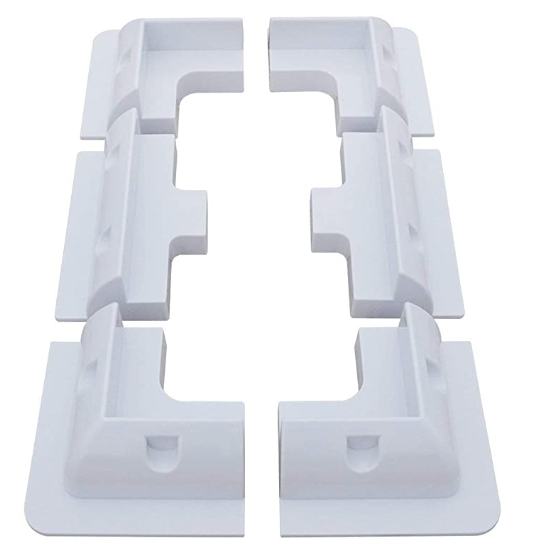

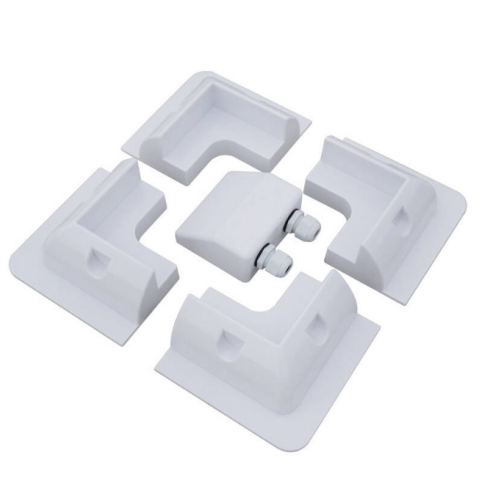

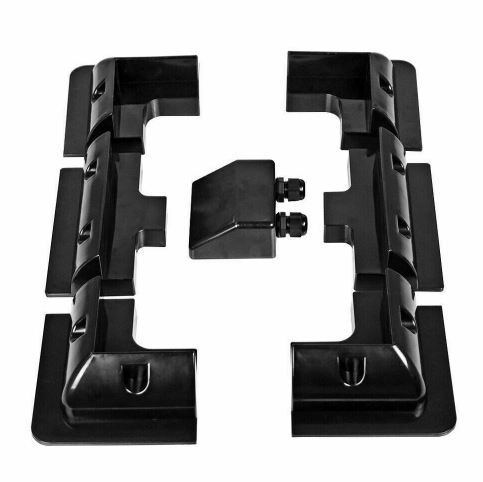

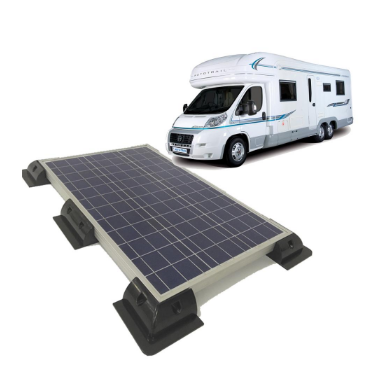

ABS solar panel caravan roof mounting bracket structure made of 100% ABS plastic. Which is an ideal way to fix the panels on the flat roofs like RV/Caravan and Motorhomes etc. The mounts will support the solar panel at the optimum height above the ;surface to enable aeration from underneath, ensuring the solar panel functions as ;efficiently as possible.

;

Features

1.An ideal way to fix solar panels on the roof or deck of motor home,caravans,boats & roof.

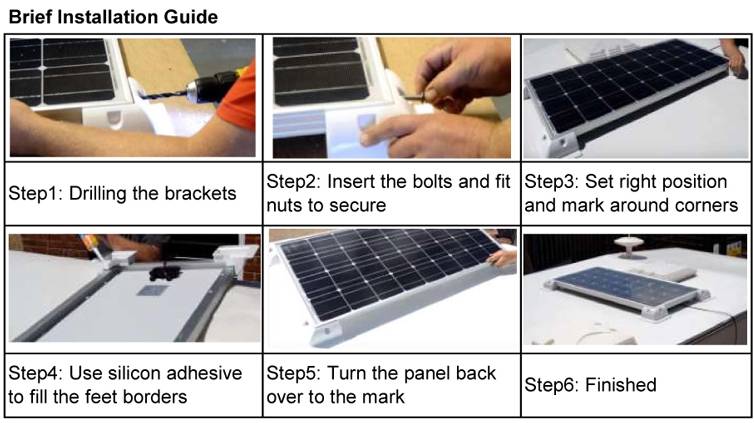

2.The mounts can be safely bonded to the surface removing the need to drill holes using drilling screws.

3.Mounts also act as a wind deflector and maintain the correct air gap between the solar panel and the roof top/deck.

4.The Panel Corner Bracket protect the corners of the solar panels from damage.

5.Reduces sharp corners on the solar panel and helps make protective storage covers easier to put on and off.

6.ABS plastic made, environment friendly and UV resistance.

;

; ; ;

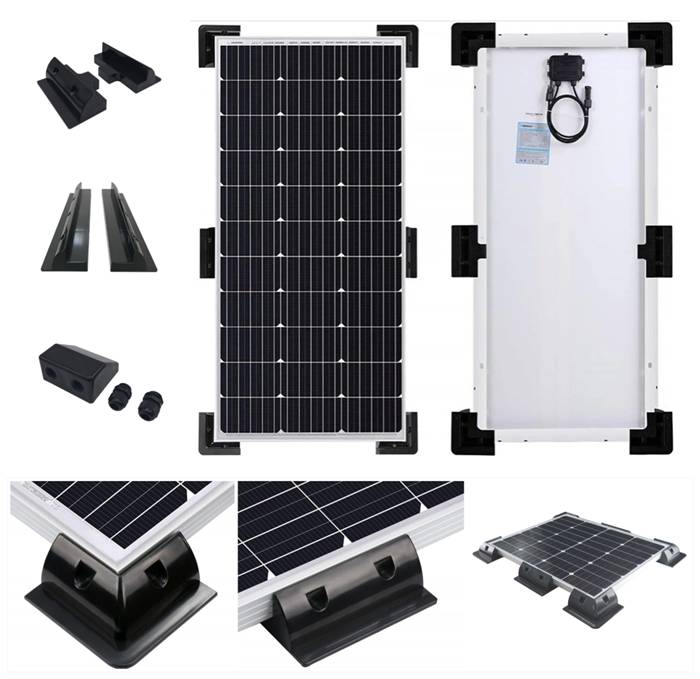

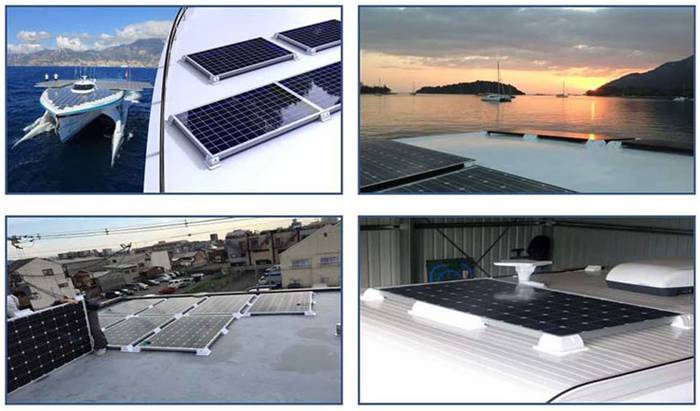

;Application

;

Packing & Delivery.jpg

_21

Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
